Working Drawings

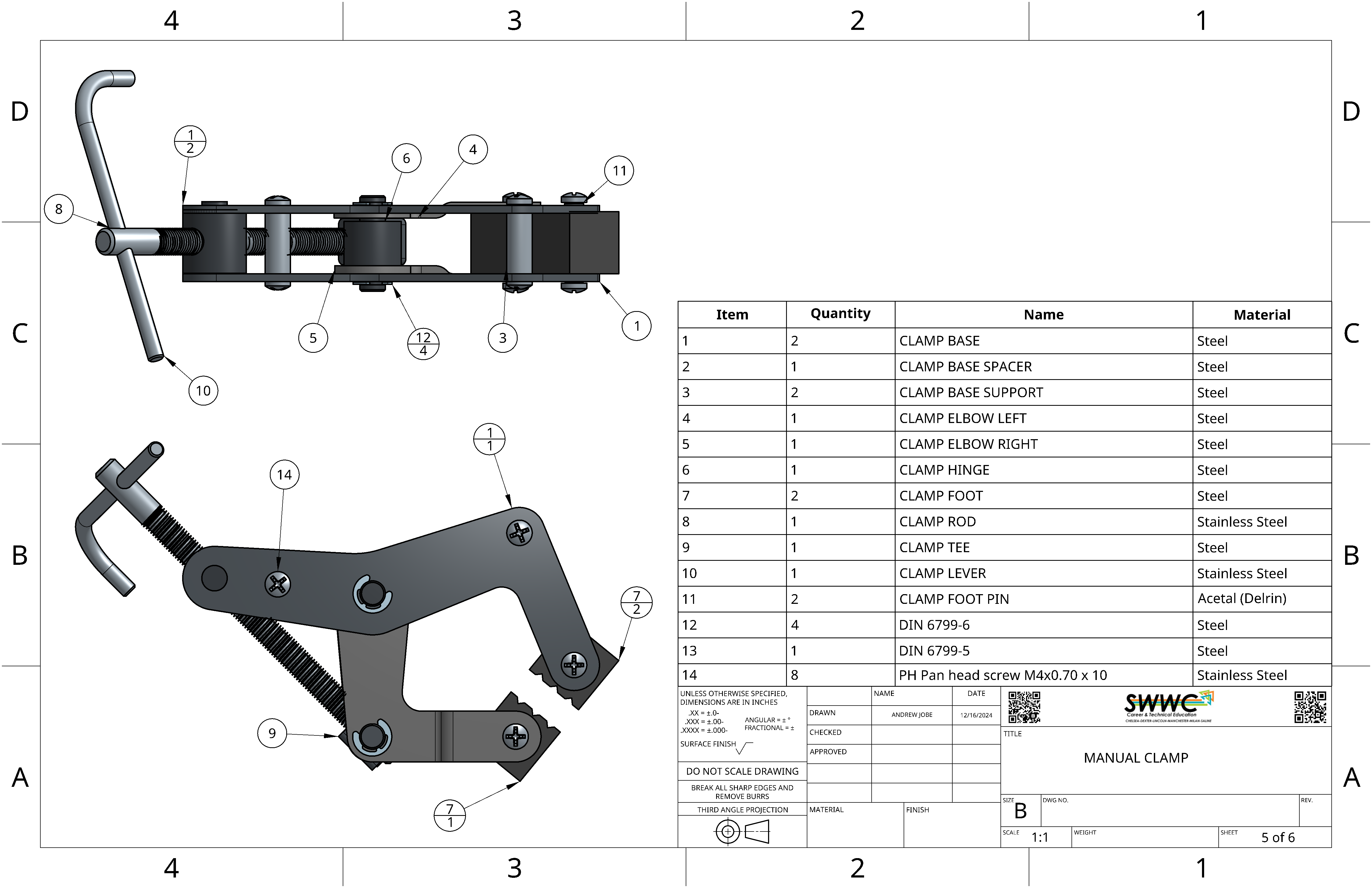

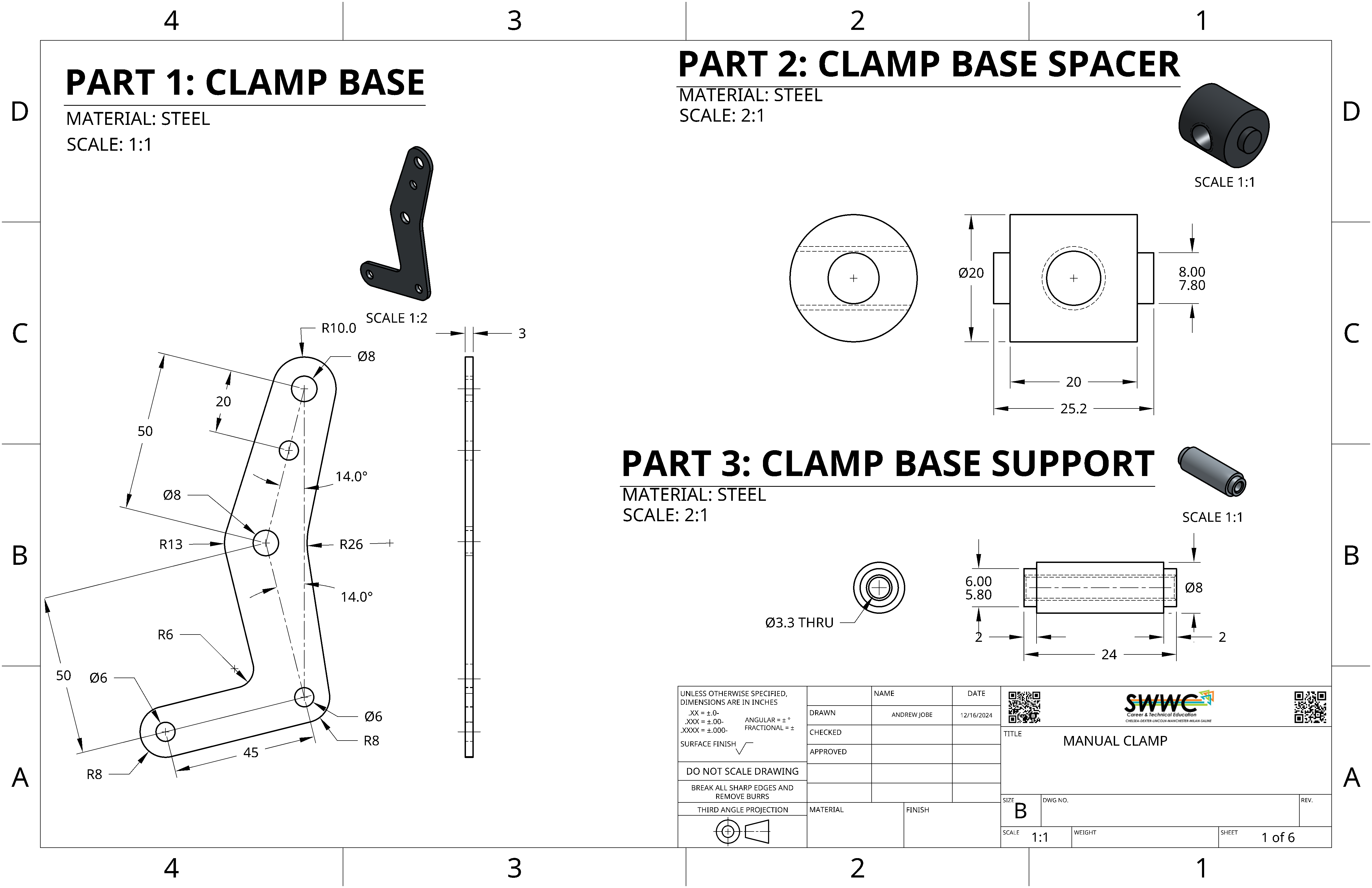

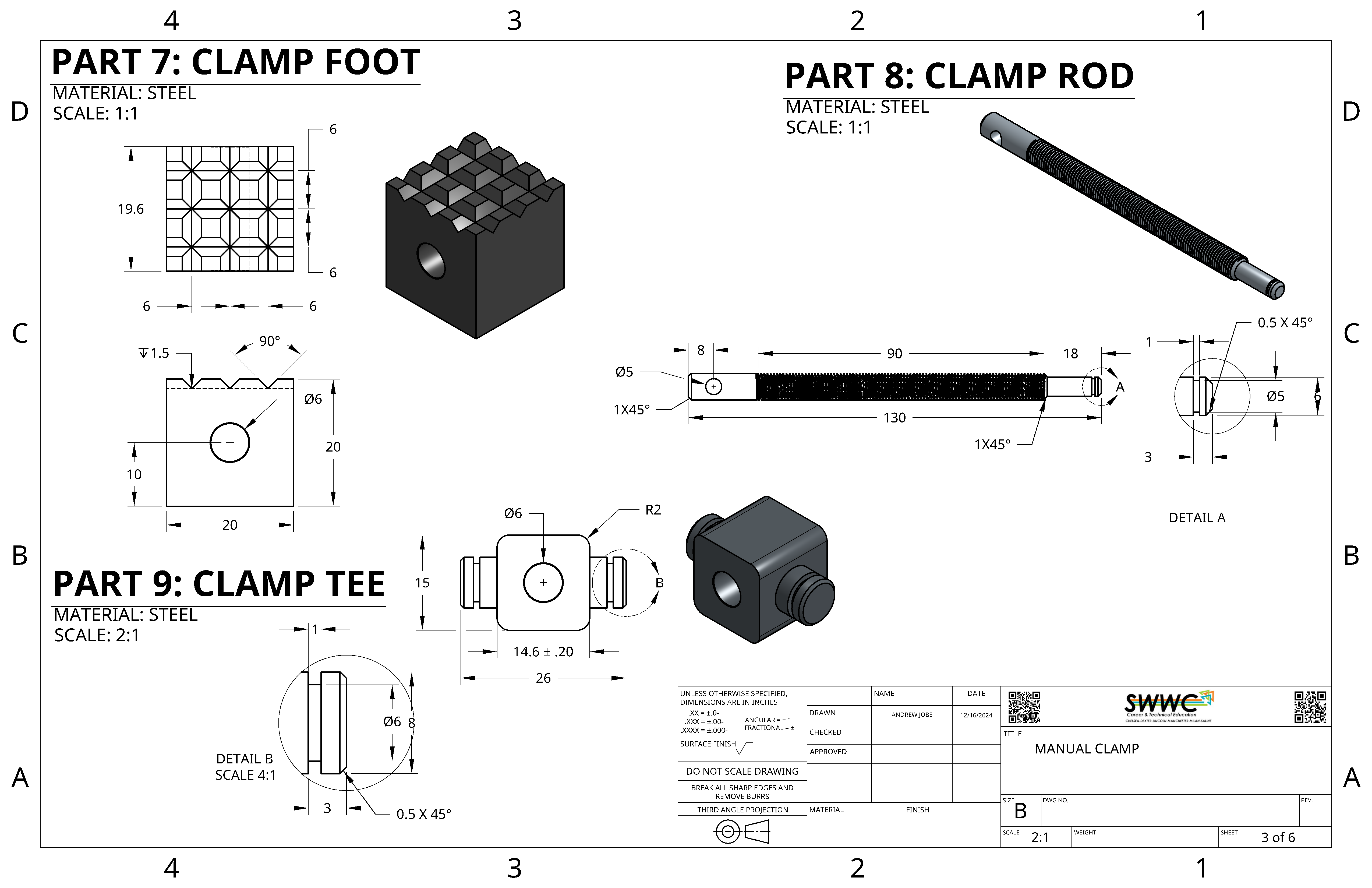

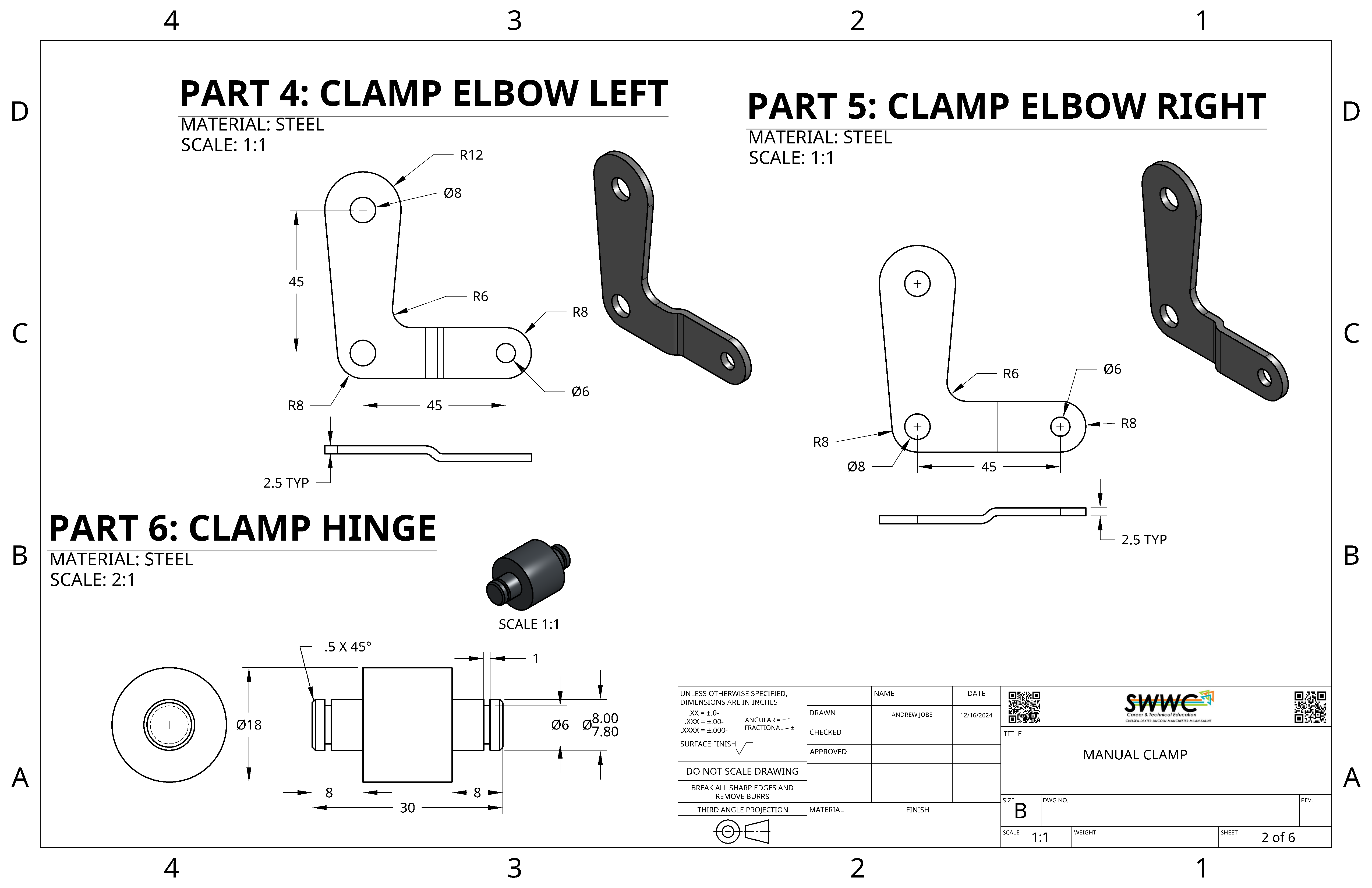

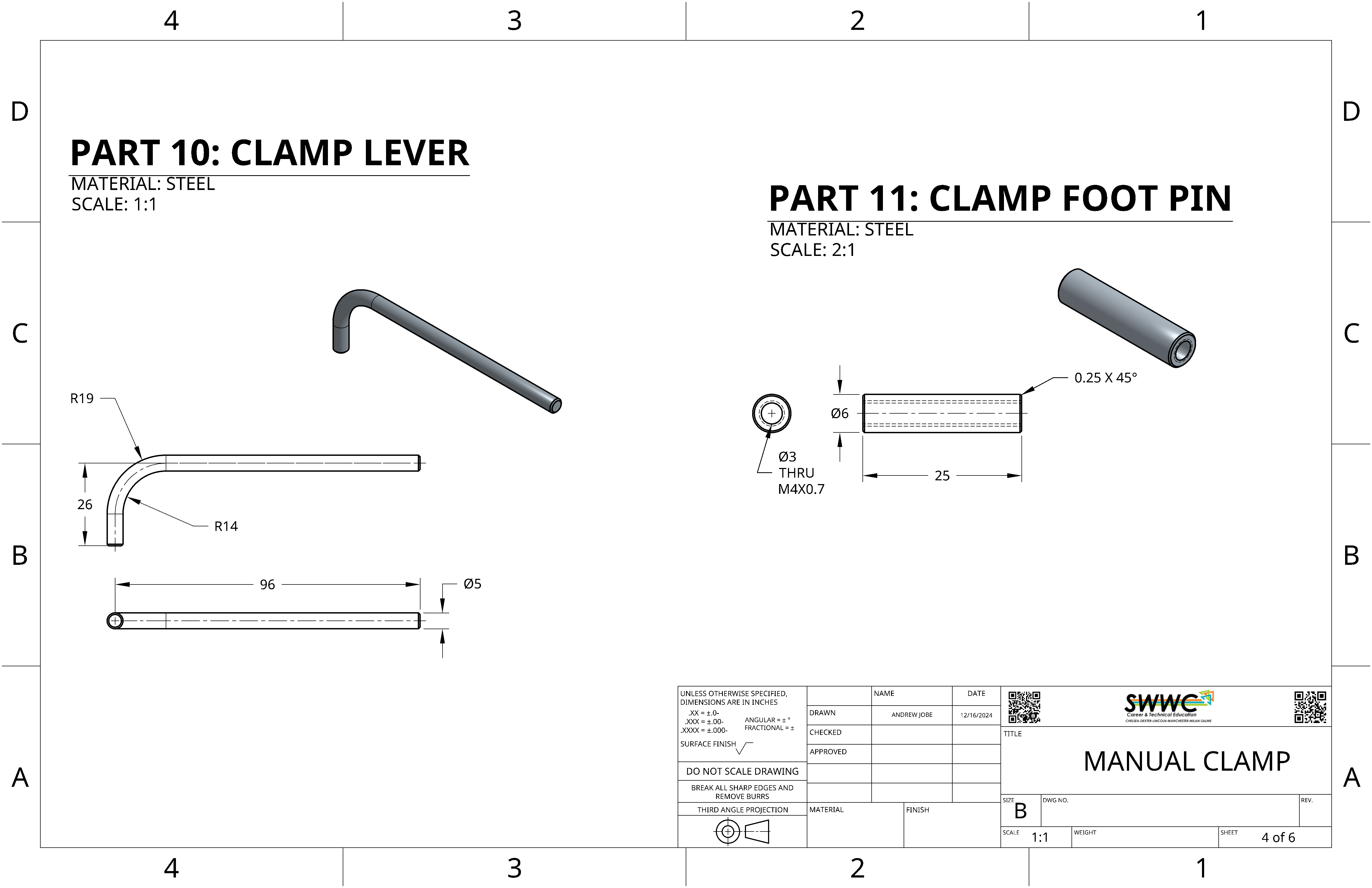

Manual Clamp

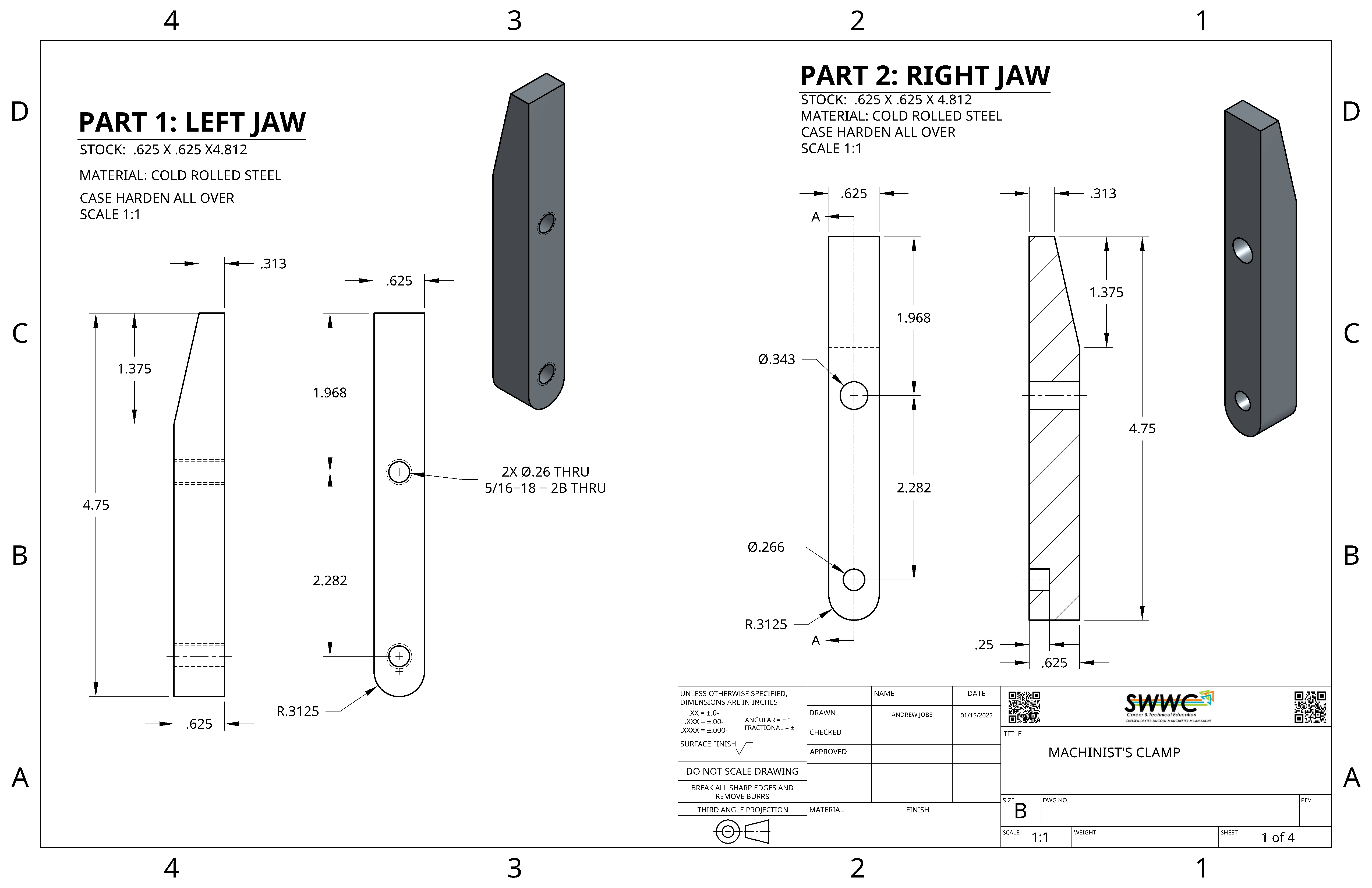

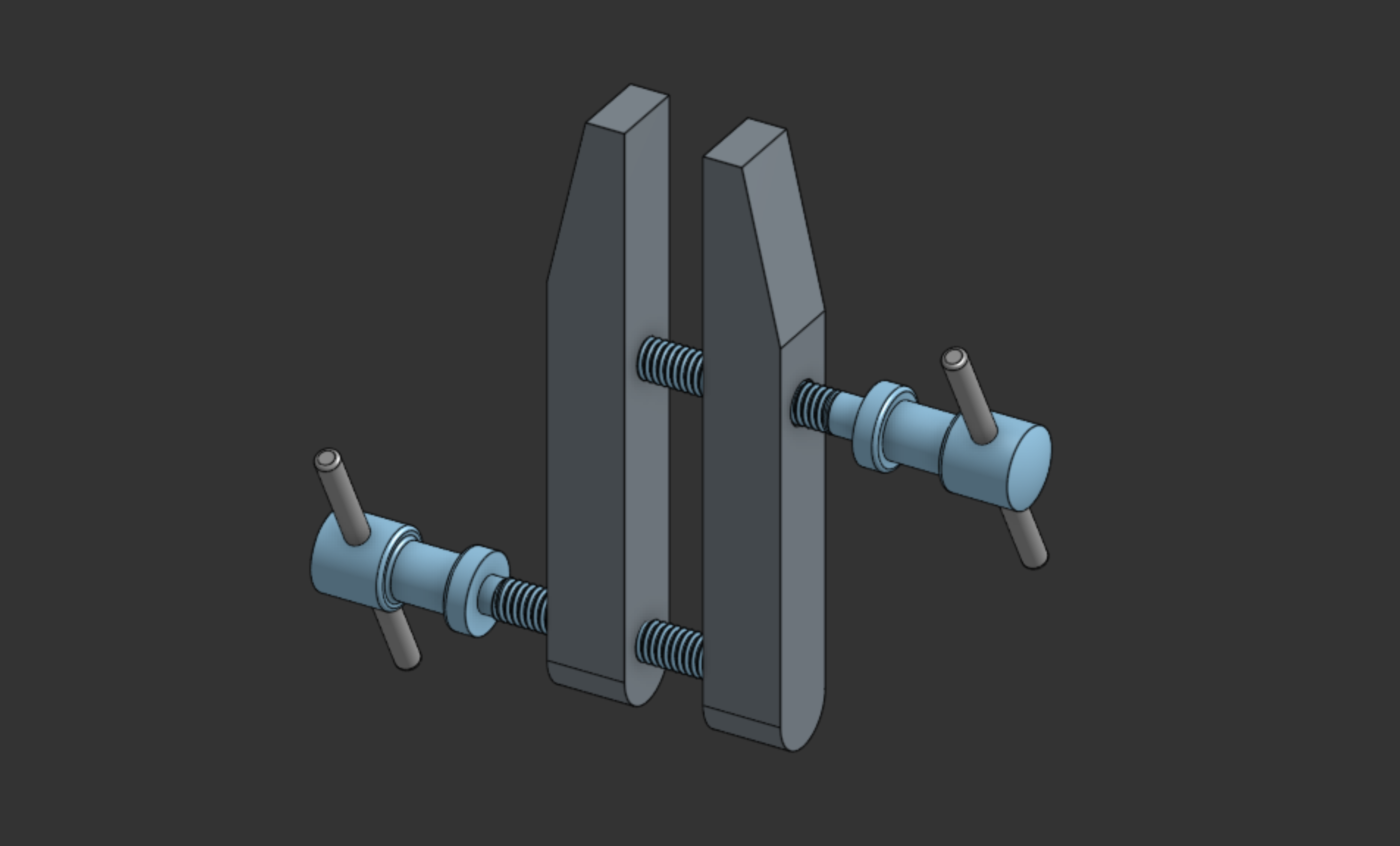

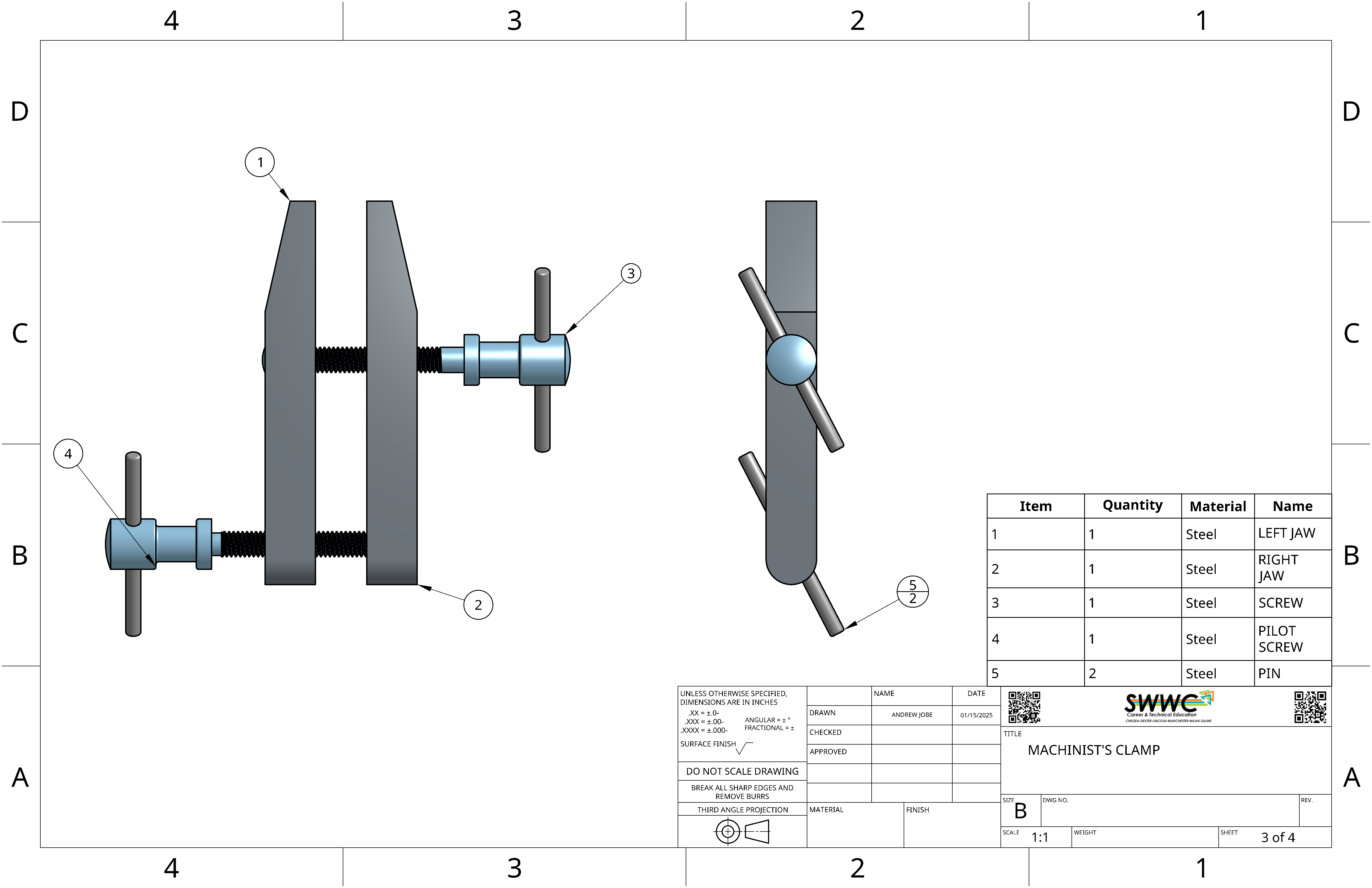

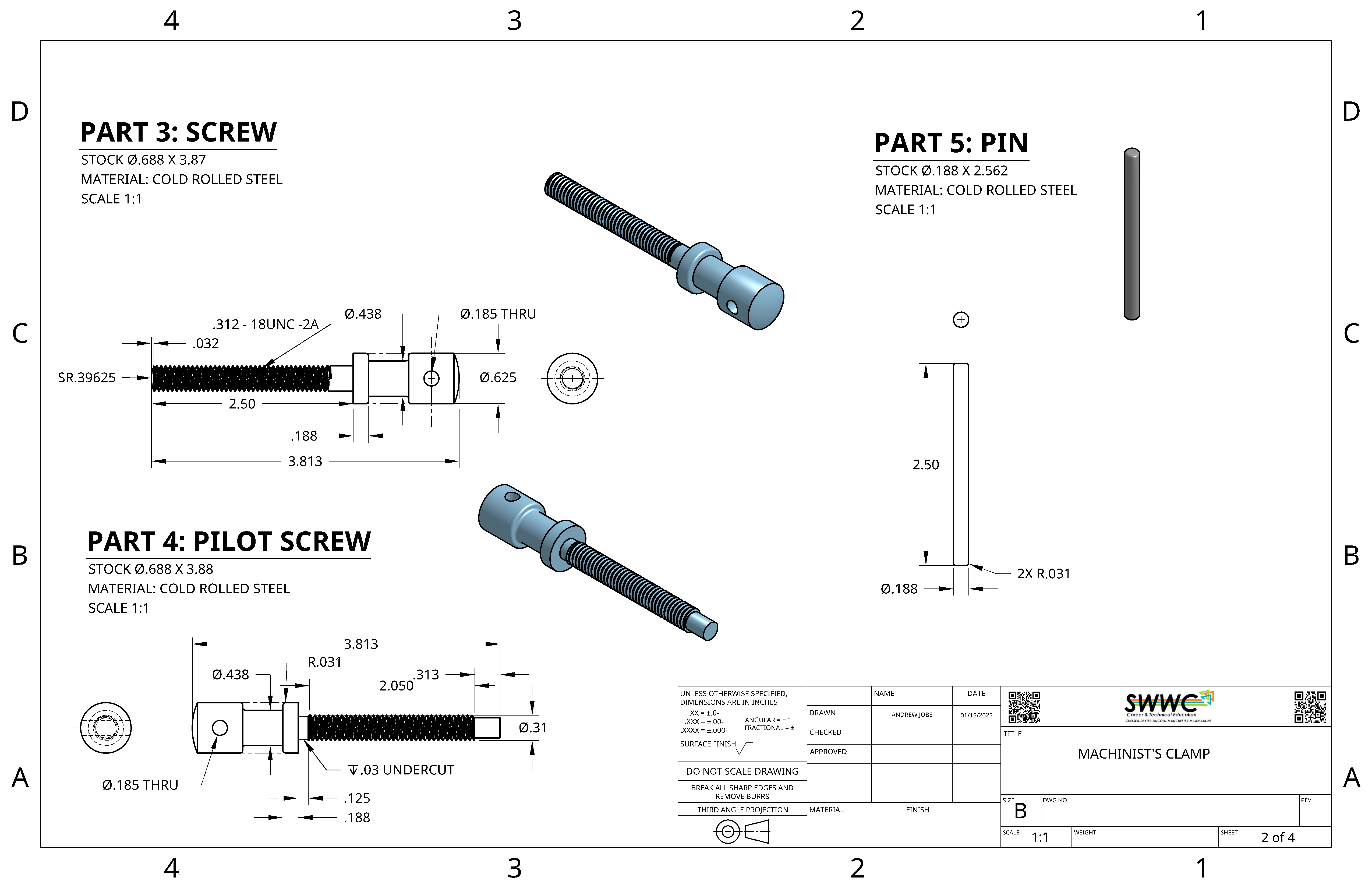

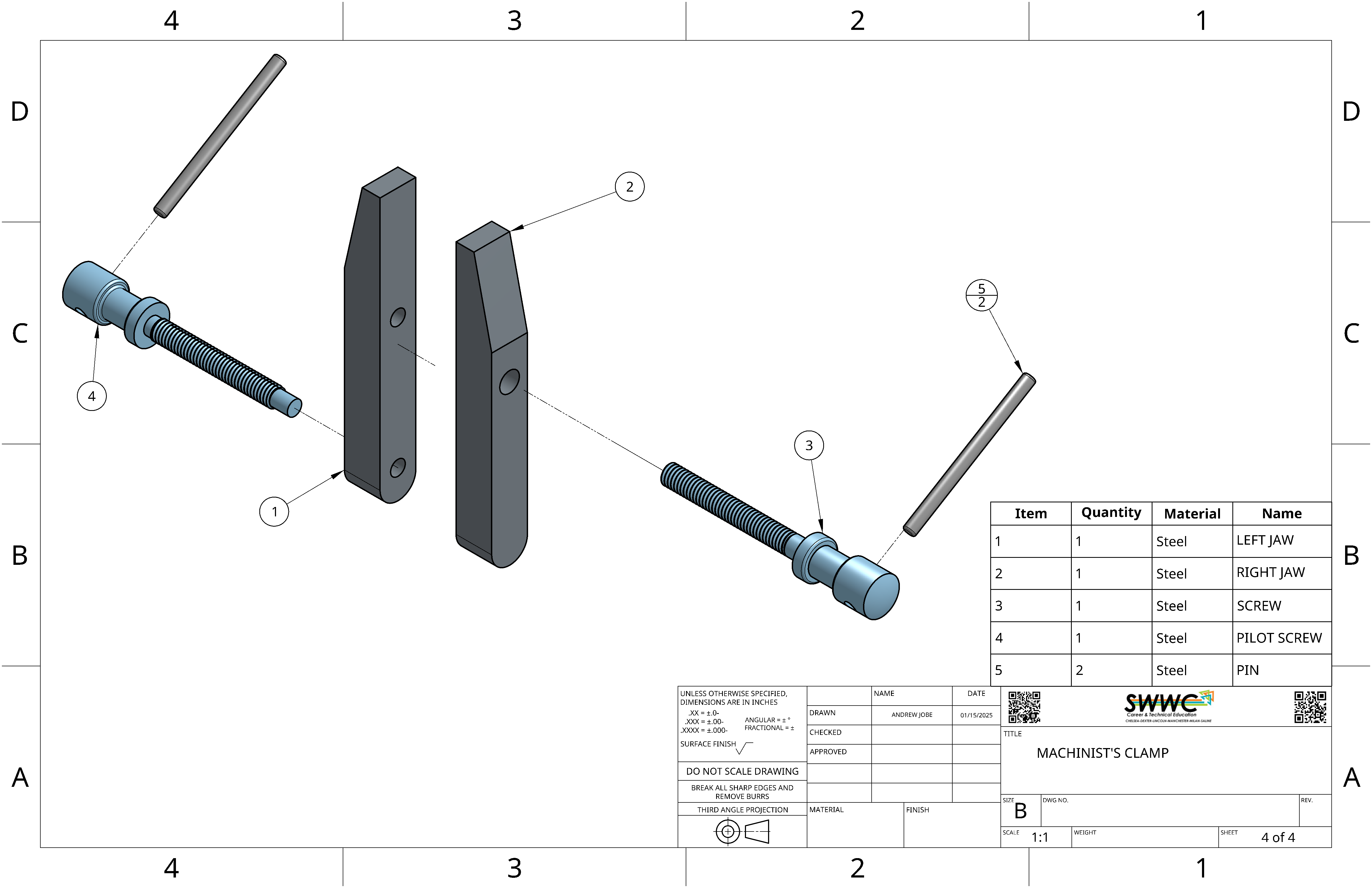

Machinist's clamp
.png)

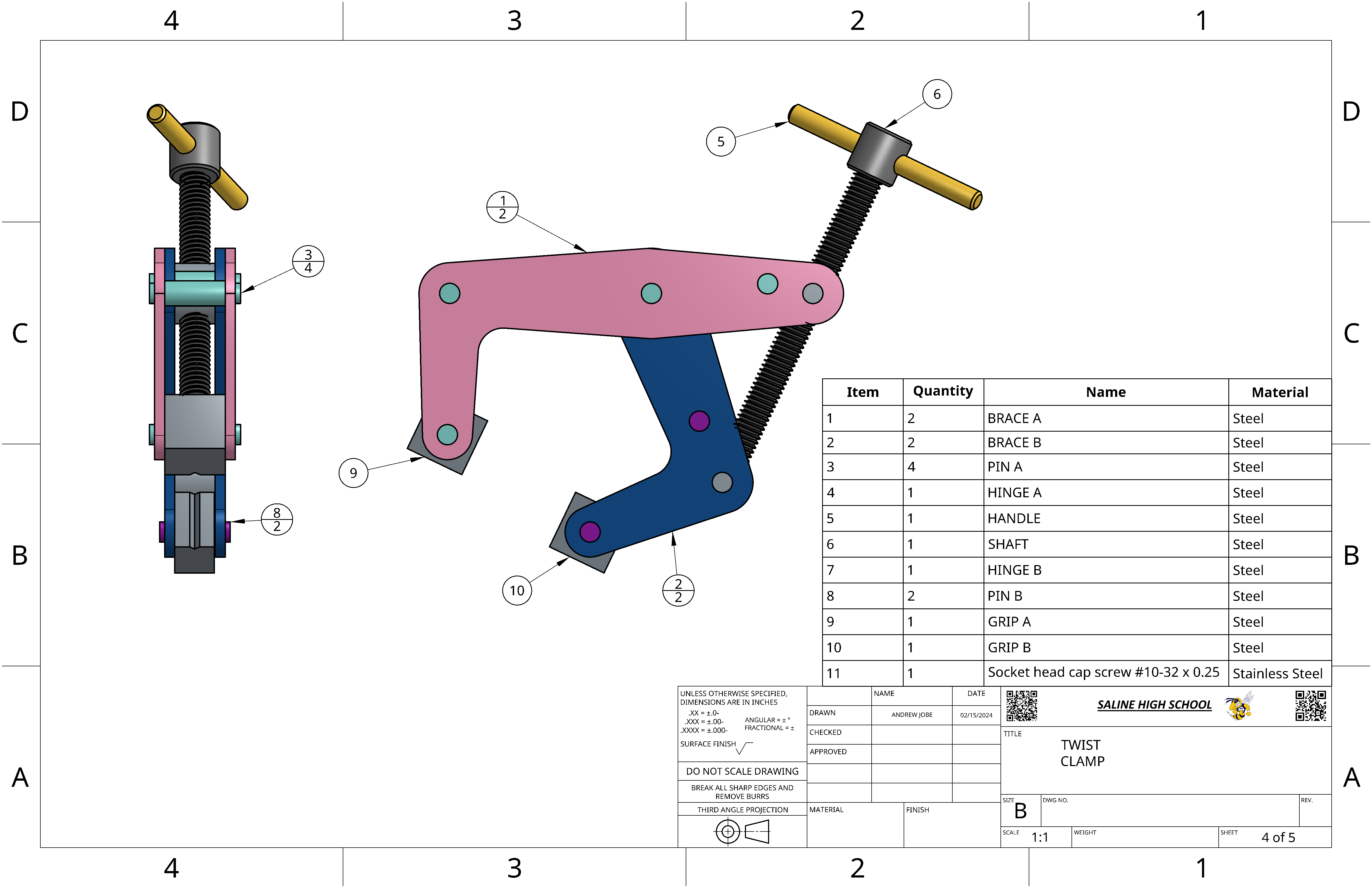

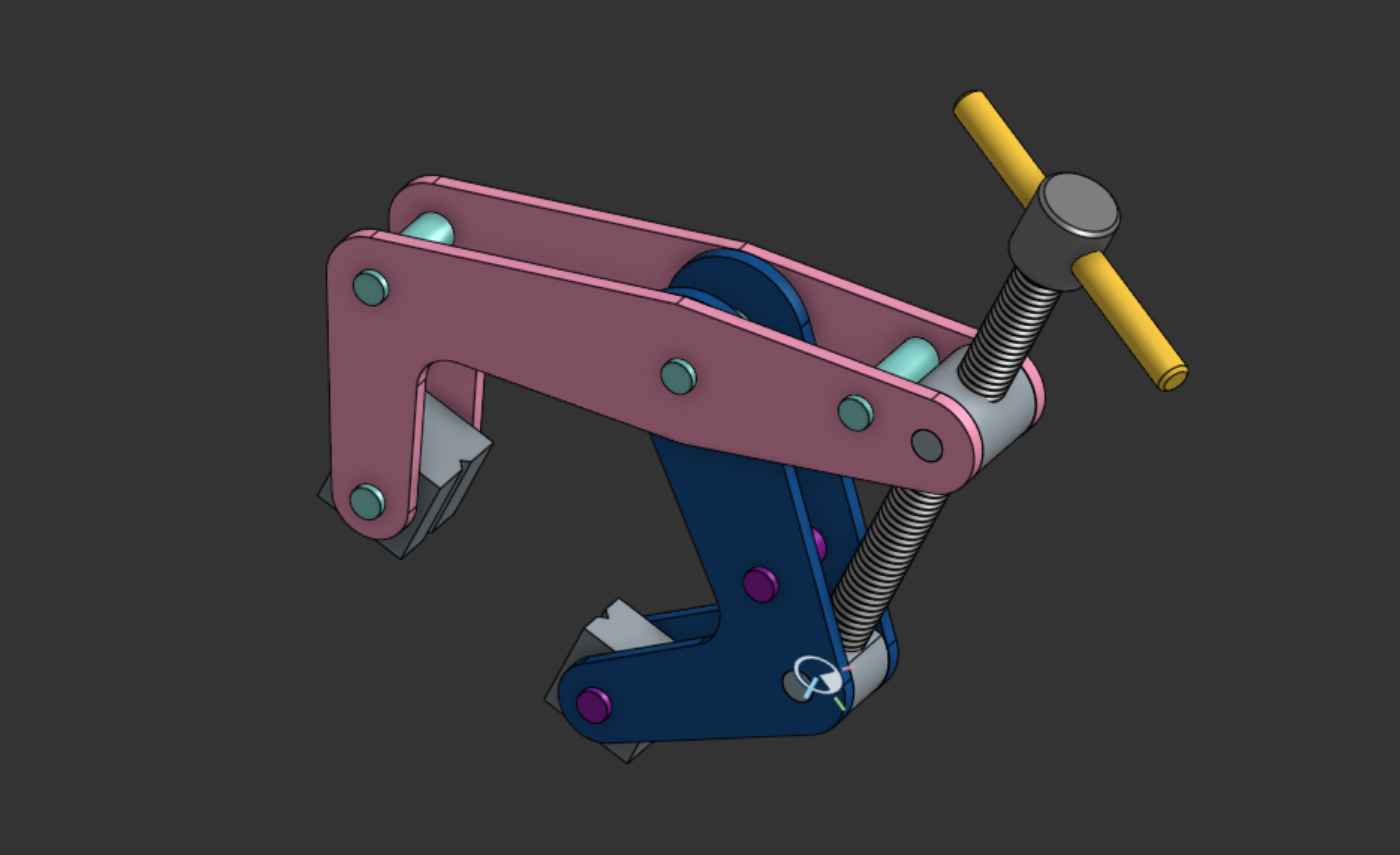

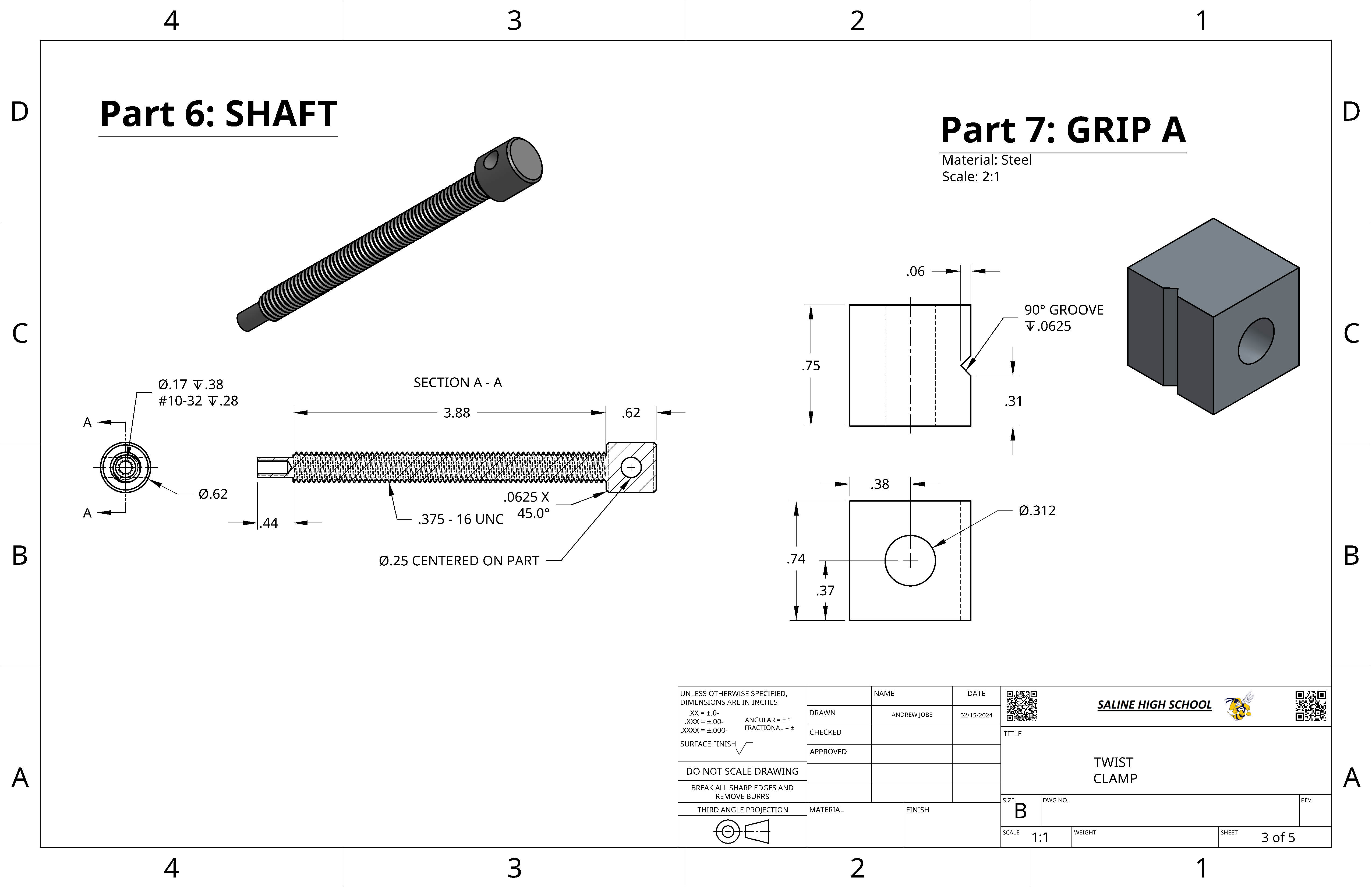

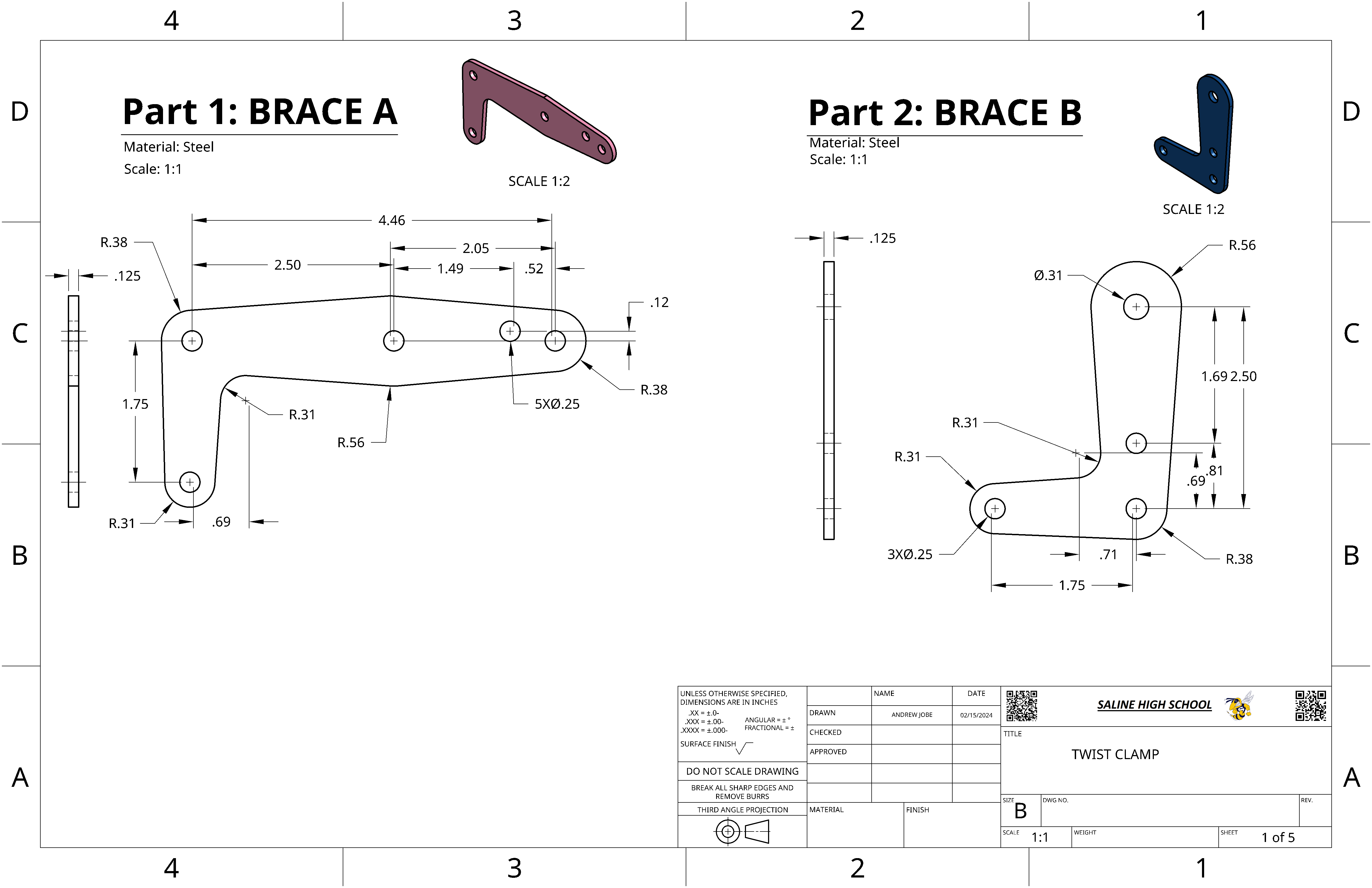

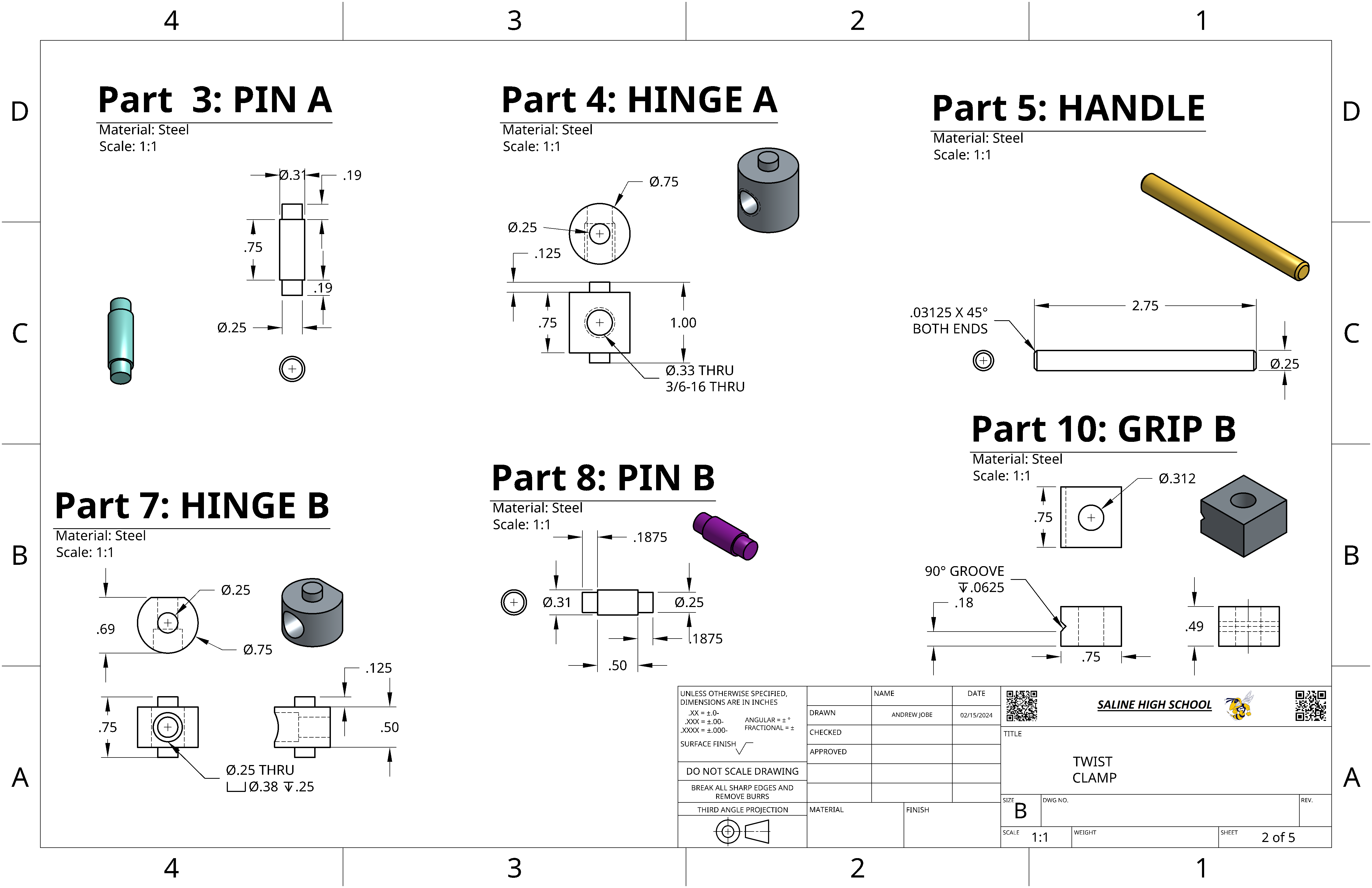

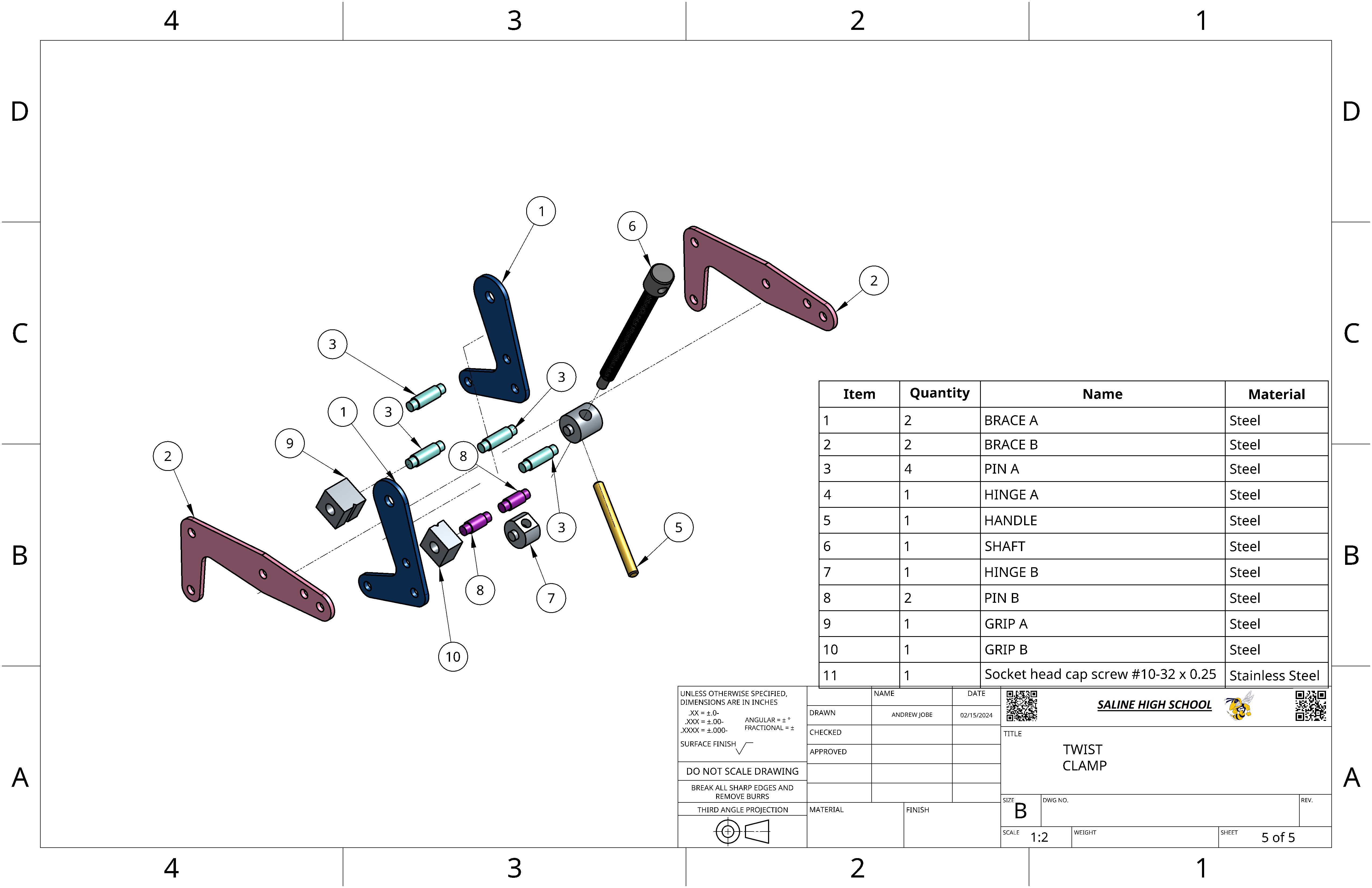

Twist Clamp
Working Drawings
- Software: Onshape
- Manual Clamp project date:
03 December, 2024 - Machinist's Clamp project date: 13 January, 2025
- Twist Clamp project date:
13 February, 2024
Working drawings are specialized detail drawings that display the information required to make the parts of an assembly.
